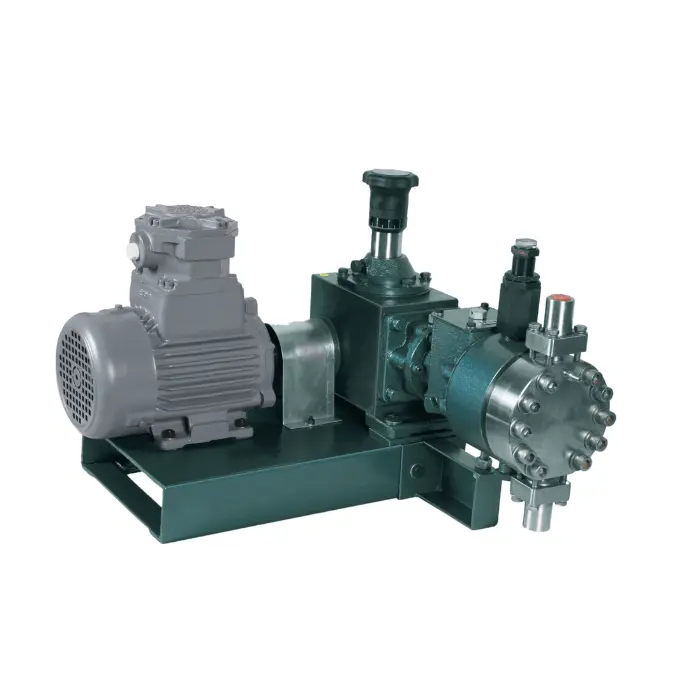

Hydraulic Diaphragm Pump

A reciprocating positive displacement pump featuring a glandless, leak-free design for hazardous and toxic fluids.

ISO 9001:2015 certified

Global Export Standards

hydraulic

Peak Capability

50,000 LPH

System Advantages

Conforms to API 675 Standard

Glandless leak-free design

High Accuracy & Volumetric Efficiency

In-built Pressure Relief Valve

Single & Double (Sandwich) options

Automatic Pneumatic/Electric control

The diaphragm is hydraulically actuated with all moving parts running in oil. This creates a hydraulic balance on both sides of the

In double diaphragm configurations, a rupture indicator system is provided. If a failure occurs, vacuum turns into pressure, which is immediately detected by a pressure gauge or transmitter.

FlowrateUp to 50,000 LPH

PressureUp to 12 Kg/cm2

Diaphragm MOCSolid Teflon / PTFE

Casing MOCCI, SS304, SS316

Rotor MOCSS316L / Hastalloy

Stator MOCViton / Food Grade Nitrile

SafetyRupture Indicator System
