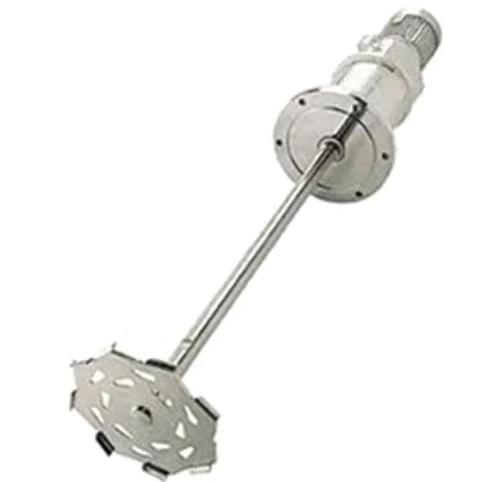

High Speed Agitators

Applications of High-Speed Agitators

• Paints and Coatings: High-speed agitators are used to disperse pigments, fillers, and binders to ensure even distribution and proper color consistency.
• Pharmaceuticals: In applications like mixing active ingredients, high-speed agitators are crucial for achieving uniform drug formulations and stable emulsions.
• Cosmetics: Used for mixing creams, lotions, and gels, high-speed agitators ensure a homogeneous blend of oils, water, and other additives.
• Food Processing: For emulsifying sauces, dressings, and beverages, high-speed agitators enable efficient mixing and consistent texture.
• Chemical Processing: Essential for producing emulsions, suspensions, and dispersions in processes like polymerization, where rapid mixing is necessary.

Key Functions of High-Speed Agitators

• Rapid Mixing and Dispersion: High-speed agitators quickly combine and evenly distribute ingredients, which is essential for homogeneity in products with multiple components.
• Shear and Emulsification: These agitators generate high shear, breaking down particle sizes and forming stable emulsions, critical for products with oil and water phases.
• Particle Size Reduction: The intense shear created by high-speed agitators helps reduce particle size in suspensions and dispersions, improving product stability and texture.
• Homogenization: High-speed agitators provide uniform mixing of ingredients, which is vital for product quality and stability, particularly in pharmaceuticals and food products.

Design Features of High-Speed Agitators

• High-RPM Motors: High-speed agitators are equipped with powerful motors that operate at high revolutions per minute (RPM), typically between 1,000 and 15,000 RPM, to create strong mixing forces.
• Shear-Generating Impellers: Impeller designs like sawtooth, turbine, or rotor-stator configurations are commonly used to maximize shear, enhancing emulsification and particle reduction.
• Variable Speed Control: High-speed agitators often come with variable frequency drives (VFDs) or speed controls to allow for fine-tuning of mixing speed, catering to different materials and process requirements.
• Sturdy Construction: Made from stainless steel, Hastelloy, or other corrosion-resistant materials, these agitators withstand rigorous mixing conditions and exposure to various chemicals.
• Cooling Systems: In some high-shear applications, cooling jackets or systems are included to manage heat generated by the intense mixing action, especially in sensitive processes.

Types of High-Speed Agitators

• High-Shear Mixers: Known for their rotor-stator configuration, high-shear mixers are used to create emulsions and reduce particle size. They are common in applications requiring intense mixing and homogenization.
• Dispersers: These agitators are designed specifically for dispersing powders and pigments into liquids, often featuring a sawtooth impeller that generates strong vortex and shear forces.
• Batch Mixers: Batch high-speed agitators are typically used for blending small to medium volumes in closed tanks, often with direct drive motors to handle thicker materials.
• Inline High-Speed Mixers: Used in continuous processes, these agitators mix materials as they flow through a chamber containing the rotor-stator, providing consistent quality for continuous production.

Benefits of High-Speed Agitators

• Fast and Efficient Mixing: High-speed agitators reduce mixing time, which is critical in fast-paced production environments.
• Improved Product Quality: By producing uniform mixtures and stable emulsions, high-speed agitators enhance the quality and consistency of products.
• Particle Size Control: The intense shear force allows for precise control over particle size, crucial for applications like pharmaceuticals and coatings where uniformity affects performance.
• Versatility: These agitators can handle a wide range of viscosities, from thin liquids to thicker pastes, allowing for flexibility in mixing different products.

Design Considerations

• Material Viscosity: High-speed agitators should be chosen based on the viscosity of the material being mixed, as some designs are more effective for thinner liquids, while others can handle high-viscosity materials.
• Impeller Type: The choice of impeller (e.g., sawtooth, turbine, rotor-stator) affects the level of shear and mixing action, depending on the specific requirements of the product.
• Tank Design: High-speed agitators work best in tanks designed to handle high shear and turbulence, often requiring baffles to prevent vortex formation.
• Cooling Requirements: In applications where heat generation is a concern, cooling jackets or external cooling systems may be necessary to manage temperature.
• Power Requirements: High-speed agitators require robust motors and should be matched to the power requirements of the specific application to avoid overheating or wear.
